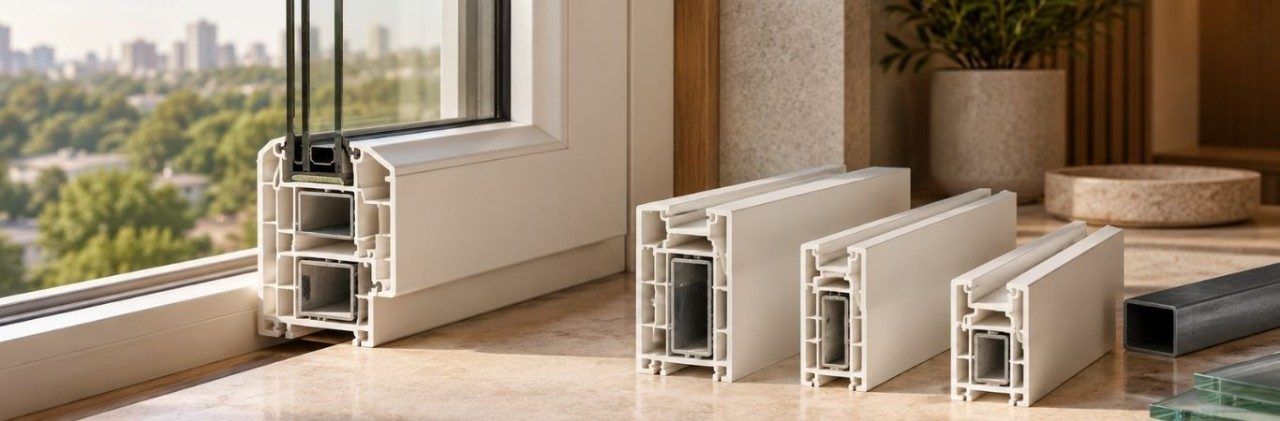

Understanding uPVC window profiles, chambers and reinforcement

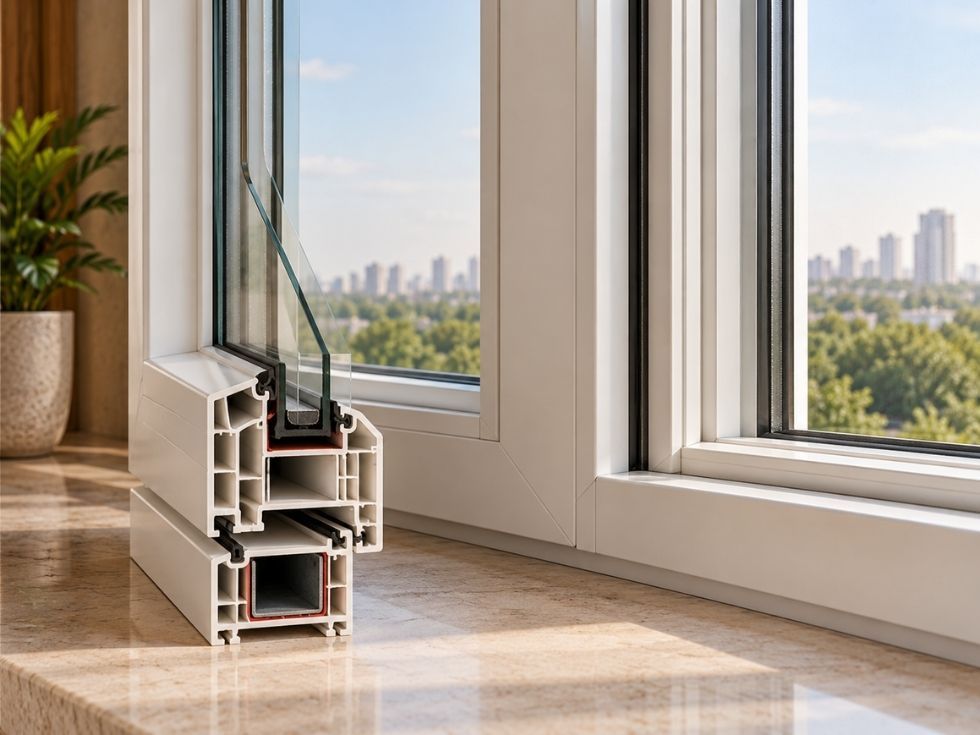

What is a uPVC Window Profile?


•    Frame, Sash, Mullion, Bead and Gasket Components

The profile is the full hollow plastic structure around the glass, made up of the outer frame, the moving sash, the mullion that divides sections, the bead that holds the glass in place, and the gaskets that seal every gap.

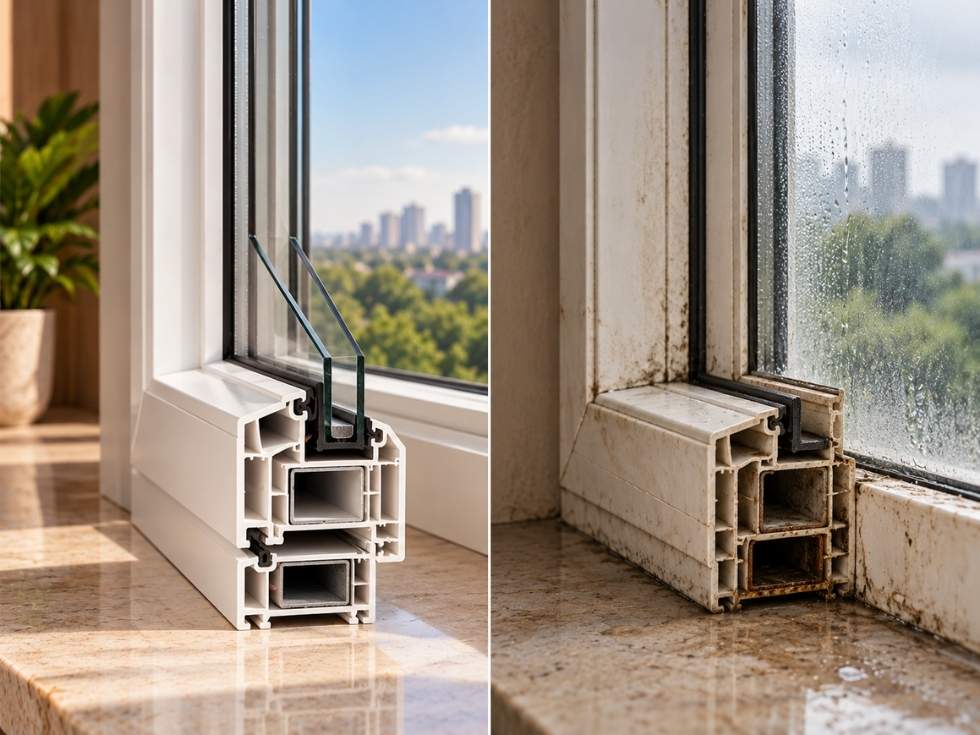

Why Profile Quality Affects Window Performance

•    Strength, Sealing, Insulation and Service Life

A well-engineered profile keeps the window rigid, airtight and insulated for years, while a poor one warps, leaks and loosens hardware far sooner than anyone expects from something that looks identical on a showroom floor. This is precisely why two uPVC windows that look identical in a showroom can age completely differently once they are actually installed.

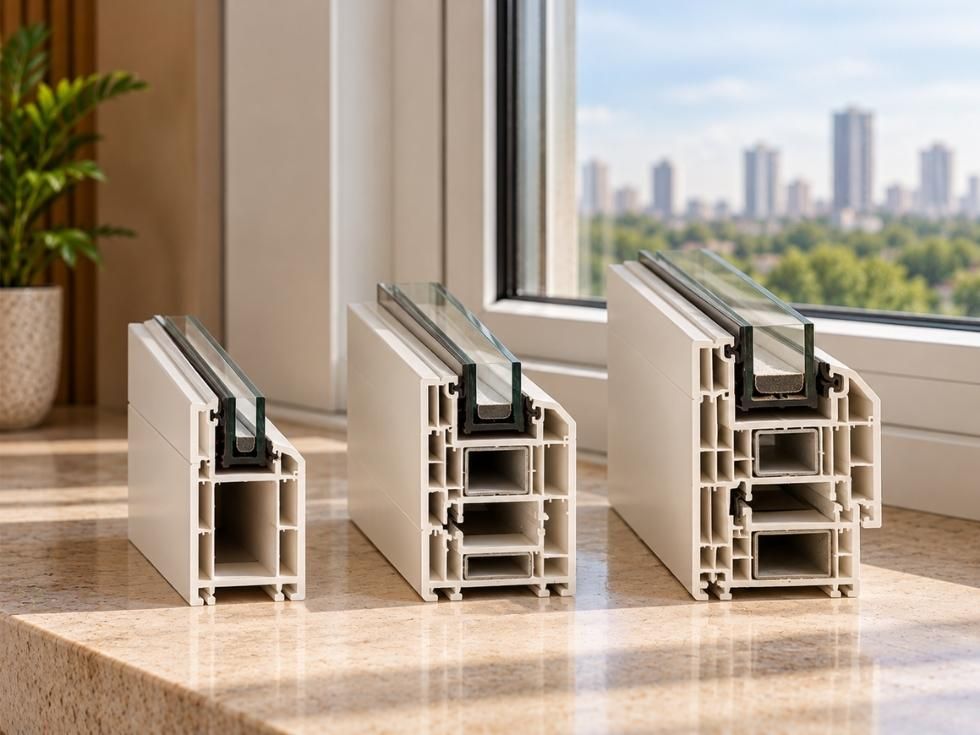

Multi-Chamber uPVC Profiles Explained


•    What Chambers Do Inside the Profile

Chambers are the hollow internal sections running through the profile, and each one traps a pocket of still air that slows down heat transfer, the same basic idea as a double-glazed unit, just happening inside the frame itself.

•    Chamber Count vs Actual Thermal Performance

More chambers generally help insulation, but a 5- or 7-chamber profile only performs as promised when the wall thickness, welding quality, and gasket fit are equally good; otherwise, extra chambers are mostly extra marketing on the brochure.

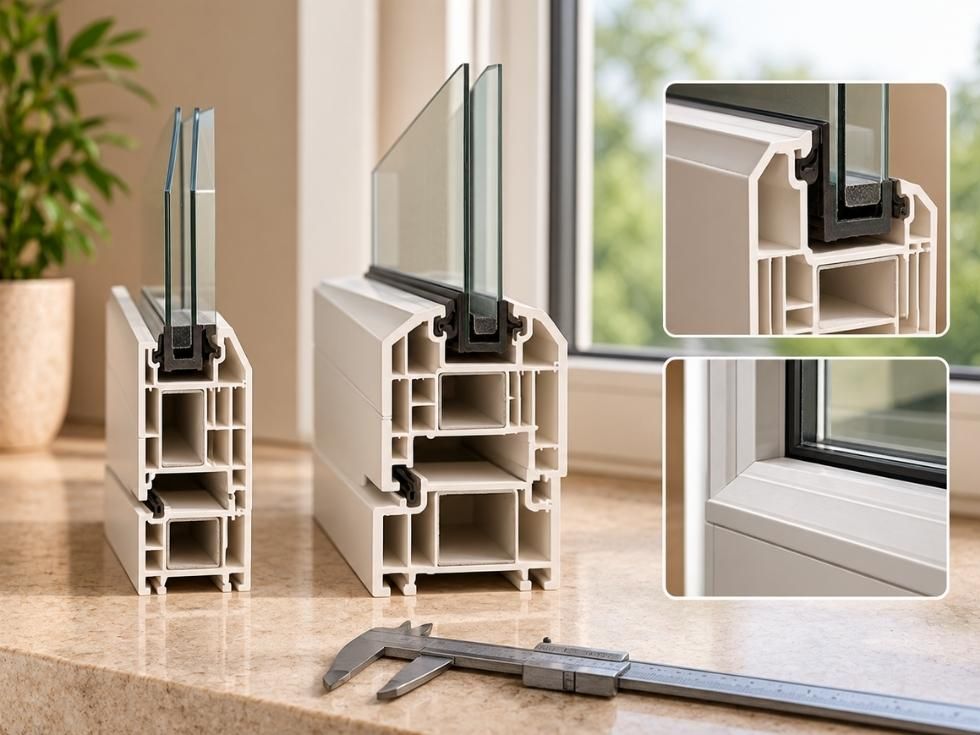

•    Profile Depth, Sightline and Classification

Deeper profiles generally allow more chambers and better performance, while a slimmer sightline looks sleeker but leaves less room for insulation and reinforcement, a genuine design trade-off rather than a simple upgrade.

•    Why Thicker Is Not Always Automatically Better

A thicker profile wastes its advantage if the internal walls are poorly supported or the welding at the corners is weak, which is exactly why wall thickness alone is not the whole story.

Steel Reinforcement Inside uPVC Windows


•    Where Reinforcement is Used and Why

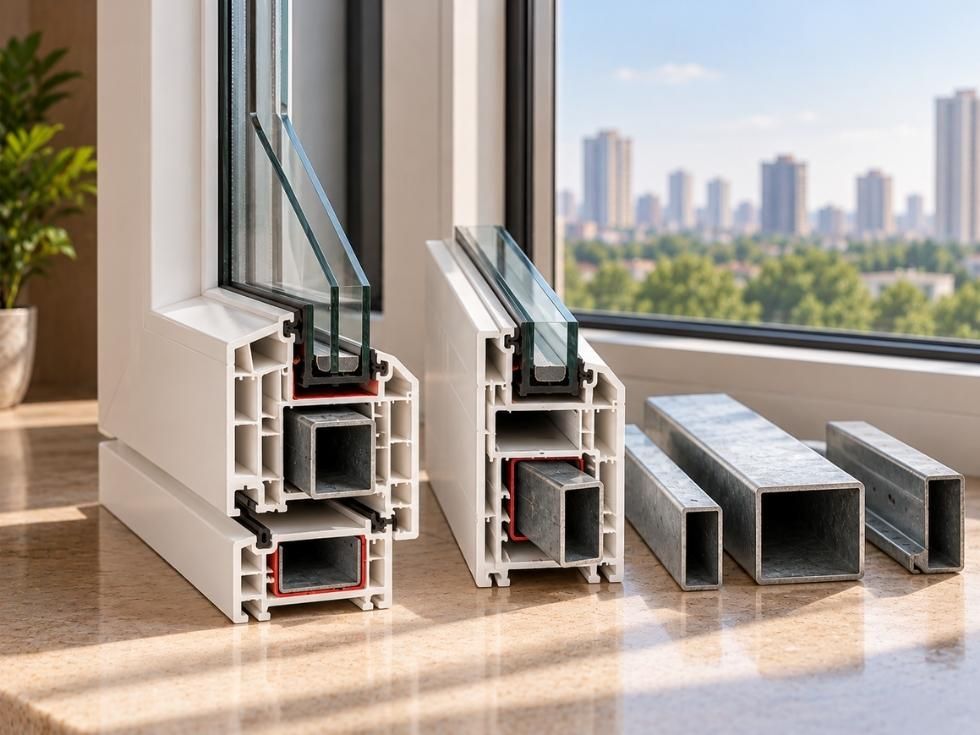

Galvanised steel sections are inserted inside the frame and sash chambers wherever the span is long or the glass is heavy, since uPVC alone can flex under that kind of load over time.

•    Galvanised Steel Thickness, Shape and Corrosion Protection

The steel itself needs adequate thickness and a proper galvanised coating, since unprotected reinforcement rusting quietly inside a sealed chamber is one of the least visible, most annoying failures in upvc windows.

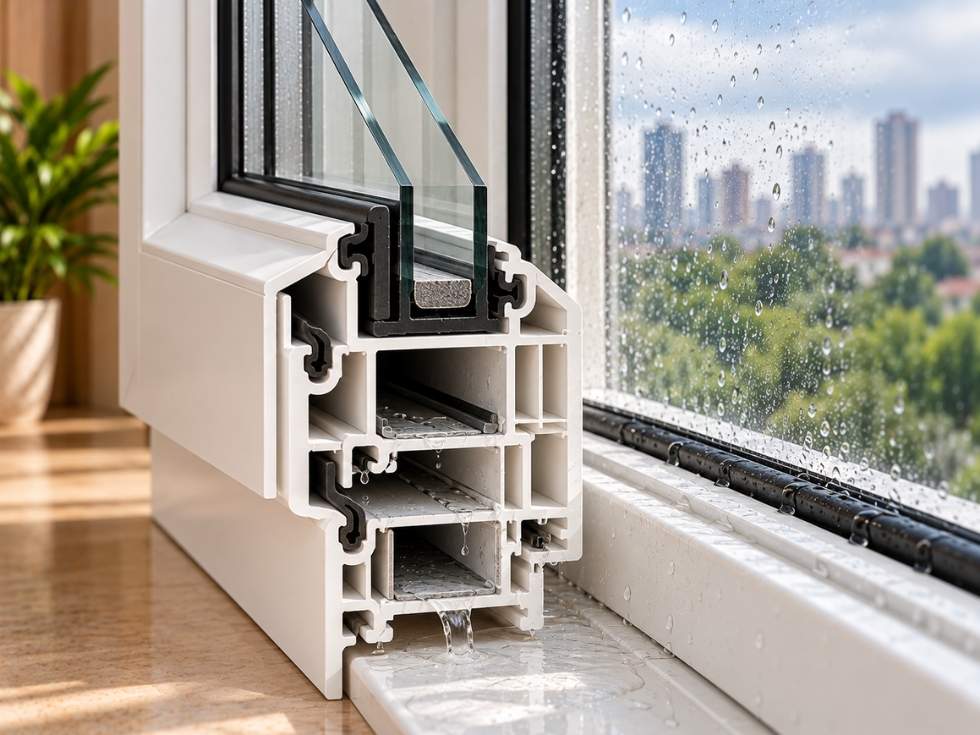

Gaskets, Seals and Drainage Channels

•    Air Tightness, Water Drainage and Dust Control

Rubber gaskets keep air and water out at every joint, while internal drainage channels quietly carry away any moisture that does get past them, preventing the slow, invisible damage that ruins frames from the inside.

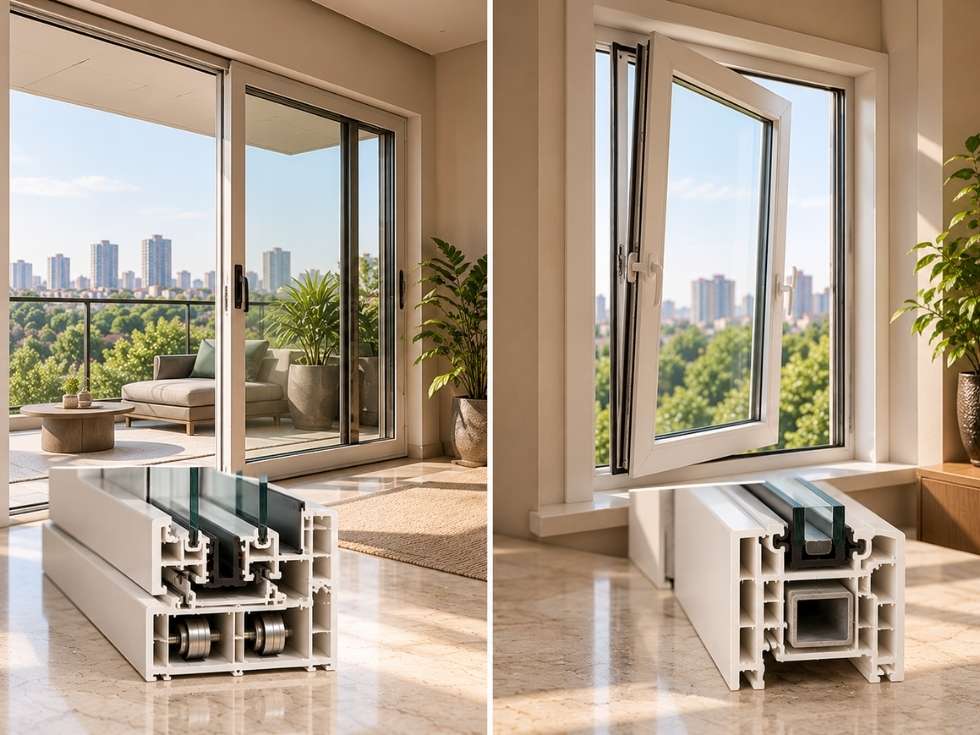

Match Profiles to Window Style

•    Sliding, Casement, Tilt-and-Turn and Fixed Windows

Sliding windows need profiles built for smooth horizontal travel, casement and tilt-and-turn designs need stronger hinge-side reinforcement, and fixed windows can prioritise slimness since nothing needs to move at all.

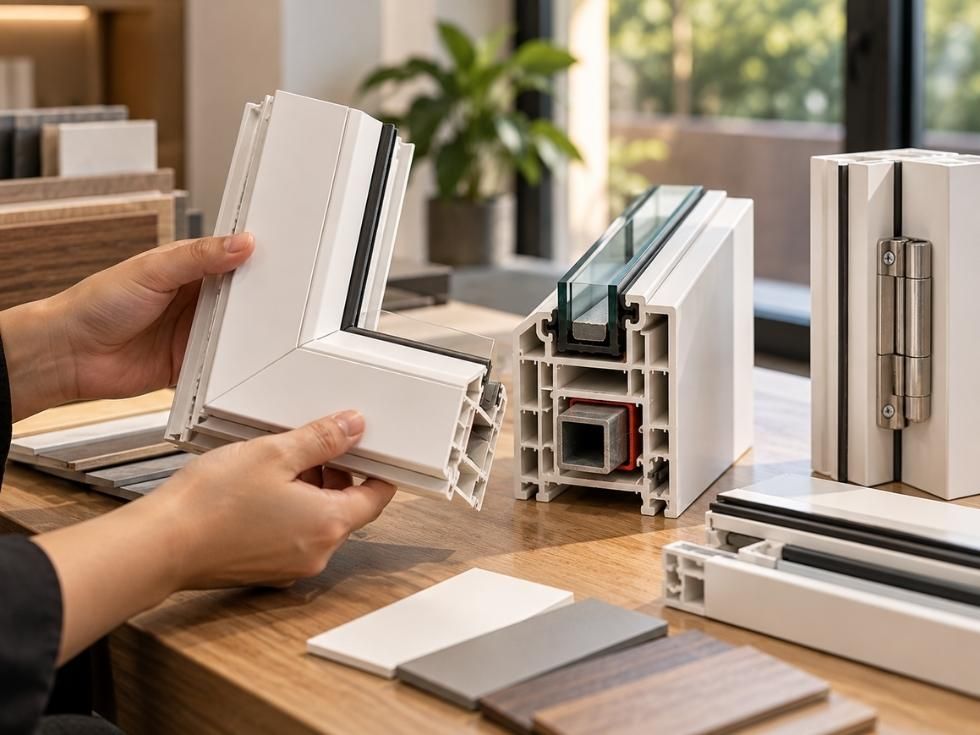

How to Evaluate a uPVC Profile Sample

•    Check Corners, Reinforcement, Hardware Fit and Finish

A good sample shows clean, fully fused corner welds, visible steel reinforcement where expected, hardware that sits flush without force, and a finish with no warping, bubbling or colour inconsistency.
